立式鐳射測量儀

1.儀器采用鑄鐵結構，剛性平臺設計搭建穩重；

2.頂尖采用步進電機轉動機構，達到可控角度旋轉，自動分度判別刀具最高鋒點，測量穩定；

3.儀器設計有專用支承機架，美觀實用；

4.采用斯帝爾專用控制電控系統，軟件與驅動一體化控制；

5.設計功能：可采用自動定位分段測量，可自動找端面分段測量，也可以隨機位置清零，自動測量；

6.測量參數：最大外徑，平均外徑，最小外徑，跳動，直徑錐度（直徑差值計算）；

7.采用斯帝爾公司開發的專業測量軟件LASER-C，操作簡單方便，一鍵測量；

8.測量直徑量程直徑≤65mm , 采用最新LED 高速高精度鐳射測量傳感器，全程測量允許誤差紅 0.003mm，重復 精度：≤ 0.001 mm。

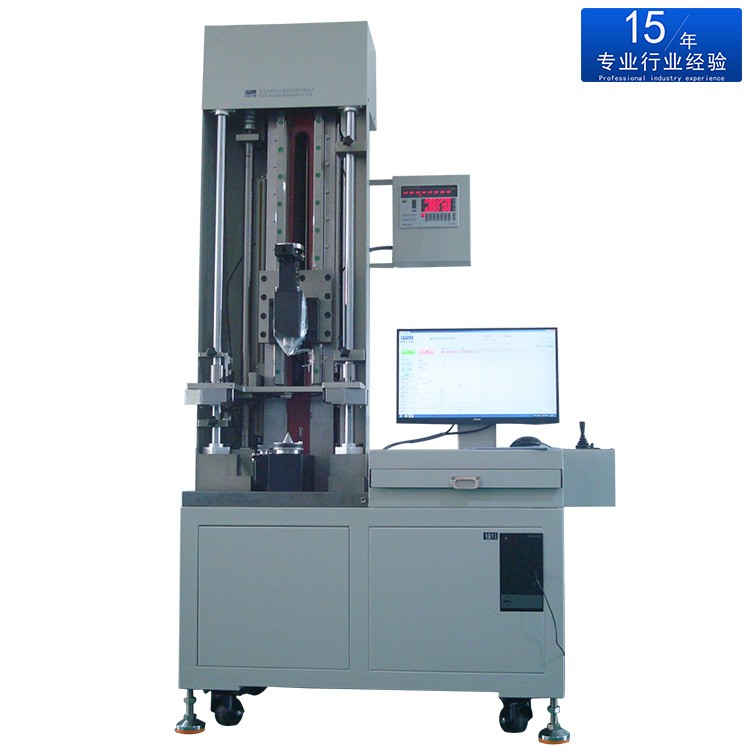

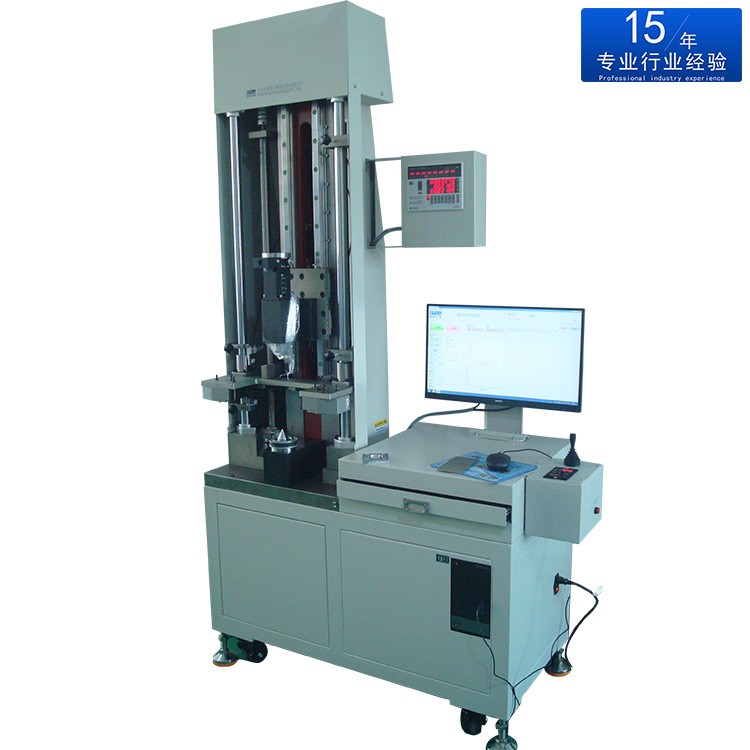

Vertical trapezometer

1) The instrument adopts cast iron structure, rigid platform design and stable construction;

2) The top adopts stepper motor rotation mechanism to achieve controllable Angle rotation, automatic dividing to judge the highest cutting edge of the tool, and the measurement is stable;

3) The instrument is designed with a special supporting frame, beautiful and practical;

4) Adopt Steele special control electronic control system, software and drive integrated control;

5) Design function: can use automatic positioning segment measurement, can automatically find the end face segment measurement, can also be random position zero, automatic measurement;

6) Measurement parameters: maximum outside diameter, average outside diameter, minimum outside diameter, runout, diameter taper (diameter difference calculation);

7) Using Laser-C, the professional measurement software developed by Styr Company, the operation is simple and convenient, with one key measurement;

8) Measuring Diameter Range diameter ≤65mm, using the latest LED high-speed high-precision laser measurement sensor, the whole measurement allowable error red 0.003mm, repeat accuracy: ≤ 0.001mm.
